SRIV SDK Release B: Creating new weapon tutorial

Discussion in 'Guides and Tutorials' started by Henry08, Apr 18, 2018.

Tags:
  1. We have already had tutorial how to replace existed weapon, but knowledge how create new weapon for workshop is very fragmented, so I decided to create full tutorial for most common cases and I am going to update it. Thanks to Flow754 and Donhok this article mainly based on their works

    You need this tools:

    Python 2.6.6
    Wx Python
    FBX Python SDK 2014 for Python 2.6
    3d editor that support FBX import-export
    Minimaul's Saints Row IV Tools
    Flow754's Weapon Clone Tool

    SECTION 1: DOWNLOAD AND INSTALL TOOLS

    SRIV SDK Release B: Clothing Item Tools

    Download the latest SDK Release B and the latest version of the FBX converter from the release thread.
    Flow754's Weapon Clone Tool
    Download and unpack to any folder with quick access

    Minimaul's Saints Row IV Tools*

    *This download is technically optional. This is for those of you that would like to merge few weapons\skins to one pack or edit weapon's name and description.

    SECTION 2PLANNING AHEAD
    This is very important step, in fact we coping weapon which exist and tweak its setting some tweak is easy some don't. So please select weapon to copy which have similar behavior as yours, the most important questions are
    - is it melee?
    - is it has clip?
    - is it has special bullet(like mines, rocket, etc)?

    Melee is simplest has only one mesh and one bone, weapon with clip is actually has two mesh (weapon and clip) and special weapon has several meshes(weapon and projectile) this all information is prescribed in asm_pc files you can edit them with Minimaul's Saints Row IV Tools but it can be little tedious.

    After this choose what you wanna to create: a new weapon, new mesh as style for existed weapon or simply new material as skin

    SECTION 3: CREATING A NEW WEAPON BY CLONING

    If you choose which weapon you want to copy, you also need to find its "real" name in game files. To find it run SR4, open weapon in friendly fire and look on Style name( HOMER in my case)

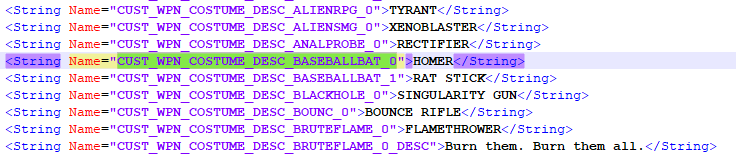

    Download this file weapon_string.zip and open reference_strings file with your language (us in my case) in any text editor( I use notepad++) then press Ctrl+F and find string that has this data
    We need "Name" parameter, so I copy CUST_WPN_COSTUME_DESC_BASEBALLBAT_0 and open

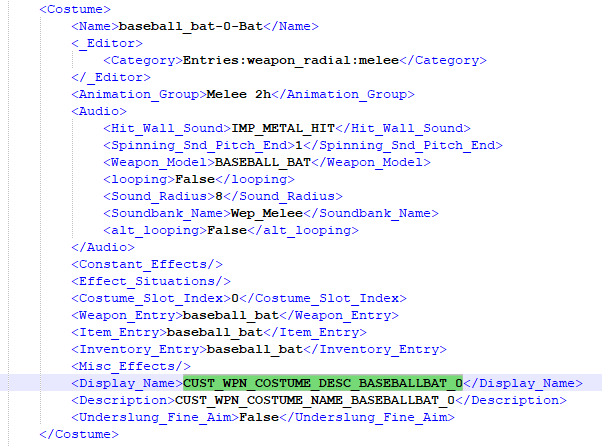

    weapon_costumes.xtbl from archive with the same text editor and find costume block that has this string
    Copy name parameter (baseball_bat-0-Bat) then run windows command line: press Win+R and type cmd in the "Open" field and press Ok

    Navigate to your Flow754's Weapon Clone Tool folder by typing the following command.

    Code (Text):
    cd “YourDisk:\yourPathTo\Flow754'sWeaponCloneToolFolder”
    In my case

    After this run Flow.WeaponClone and copy weapon

    Code (Text):
    Flow.WeaponClone SourceWeaponName NewWeaponName weapon [output]
    I my case it looks like this

    More info about clone tool you will found here

    Tool will create inside its folder new with your new weapon name and it will has all weapon files

    SECTION 4: CREATING NEW WEAPON IN MAYA
    For maya set this settings
    Up axis Z
    Lineat unit centimeters
    Create mod folder in any folder and copy there textures for your weapon in .tga format

    In Saints row 4 there are two pack with textures, one low-res within weapon archive and one hi-res in separate _high archive. Hi-res textures has _lg suffix, low-res has _sm suffix. To prevent some glitches please crete low-res textures.


    Note: There are some quirks in SR4 exporting tool linked the to scale, there is few ways to get around them, I will show one that seems to me as easiest.
    You can create or import any weapon with real-life scale in centimeters and place it to the coordinate center. For example average sword in SR has height around 100 cm
    After this
    1) Freeze transform: Modify>Freeze Transform
    2) Select your model and scale it down to 0.394 that is the same quirk as I mentioned before and freeze transform again
    3) Create phong material: Windows>Rendering Editor>Hypershade
    In the Hypershade: Create>Materials>Phong
    Name material as you wish(my_melee_weapon_material in my case) and set an least one color texture

    Full material guide is here

    Choose low-res textures

    Select your weapon and apply created material
    In my case I need another one material so I create it in the same way, named it as my_melee_weapon_material1 and applied to selected faces

    Creating bone chain
    For melee weapon you need only one bone
    Create it, rename it to bone_root and place to zero coordinate, after this freeze transform with this settings

    Saints row has some specific bone mapping, so for proper exporting we need to add some extra data to the bone

    Add extra attributes
    Select your bone, Modify>Add Attribute

    First attribute

    Long name - p_bone_name
    Nice name - P Bone Name
    Make attribute - Hidden
    Data Type - String


    Then add second attribute

    Long name - p_bone_order
    Nice name - P Bone Order
    Make attribute - Keyable
    Data Type - Integer

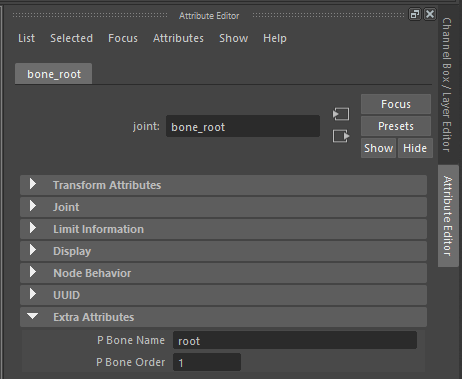

    After this in attribute editor set in the extra attributes section
    P Bone Name - root
    P Bone Order - 1

    Add tags
    Game engine need to know where to place character's hands, impact point and other effect, empty groups are using for this purposes in Maya. To create empty group deselect anything and press Ctrl+G
    Melee weapon has three main groups with the names

    tag_weapon_handle - place for the right hand
    tag_weapon_impact

    You can create your own with uniq name, for example for placing some effect, they only need to have tag_ prefix

    For example

    tag_my_vfx

    After creating all tags, select them all in the
    ,
    Press middle mouse and drag and drop them to bone_root
    One problem with empty group because they are invisible in viewport, only when you select them in Outliner with enabled move tool. Select and move empty group to place where you want to place it
    Skinning
    Select your weapon mesh then add bone_ root to selecton then F2>Skin>Bind skin
    As we have only one bone there is no need to tweak automatic skinning

    After this there is time for some Volition's magic. Select bone_root and scale it to 2.540
    Note: The process of creating firearm without clip is the same, you only skip steps with clip, also you don't need tag_gunmag_handle. Pistols don't have tag_attach
    There is not so much firearms with clip i SR4 there are pistols, Heavy SMG, Automatic Rifle and Burst Rifle for creating G36K I decided to copy Heavy SMG because currently Flow.CloneWeapon tool has some trouble to copy clip for the rifles
    Then I look CUST_WPN_COSTUME_DESC_SMGLG_0 in weapon_costumes.xtbl
    This is string belongs to SMGLarge-0-SWAT costume so I'll clone it
    Create or import weapon mesh to Maya scale to real size in centimeters and place it like the middle of the handle should be near centre of coordinate

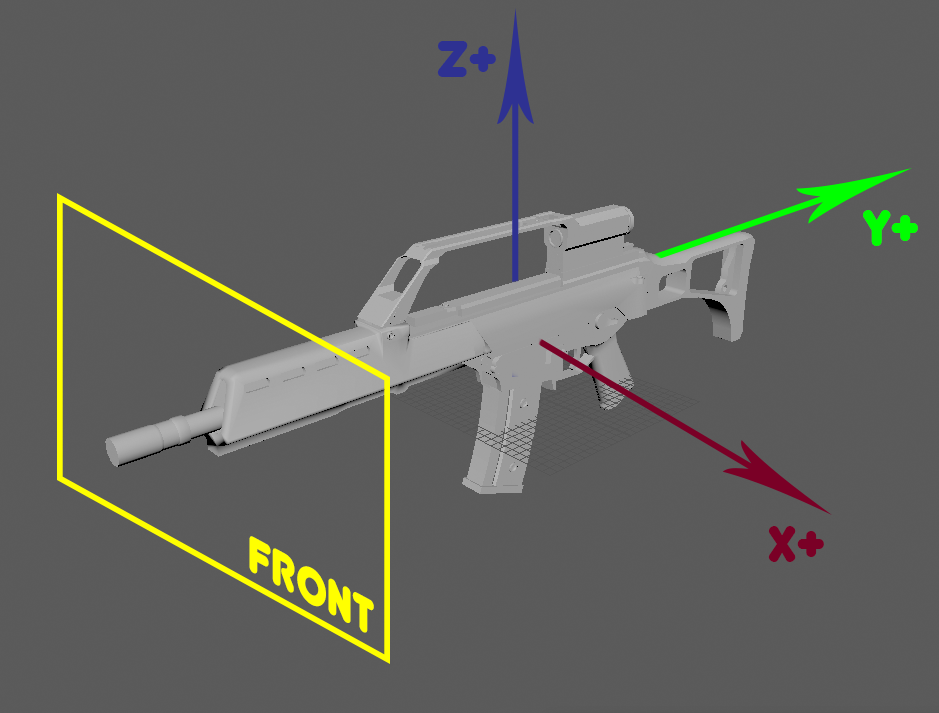

    Also axis orientation should be like this
    Freeze transform: Modify>Freeze Transform
    Extract clip to separate object
    Look to your cloned weapon and find cloned archive with clip, in my case

    Copy its name and past it to your clip
    As you see there is some problem. Maya replace all "-" to "_" in names. There are few ways to fix, the easiest one is rename file after exporting. I will show it later.

    Create new Phong material and apply to your meshes. Your weapon can has few materials up to 10 but material for clip should be first.

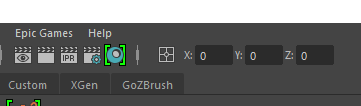

    Select your weapon mesh, activate move tool and press edit pivot
    Set zero to x y z fields and press Enter
    Scale mesh to 0.394
    Freeze transform:Modify>Freeze Transform
    Scale clip to 0.394 too

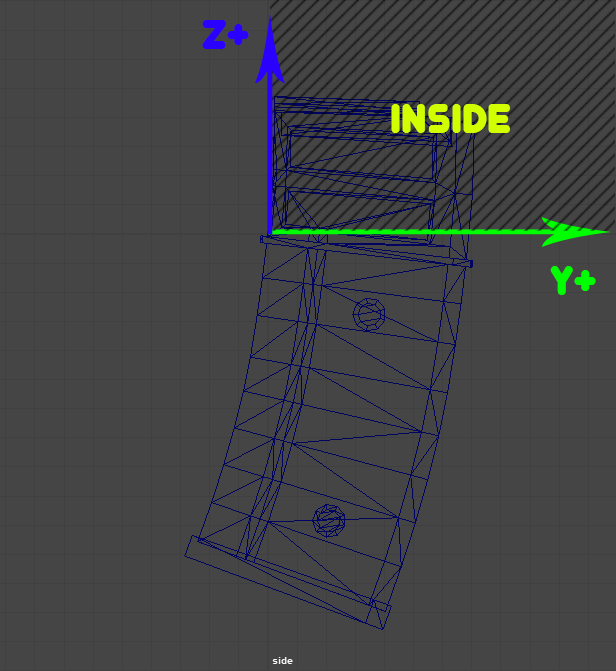

    Move clip to the center of coordinate, part of clip that should be inside of the rifle need to be above zero coordinate
    Freeze clip transform:Modify>Freeze Transform

    Creating joints
    Activate Snap to grid and create two bone\joints first is for main part, the second is for slide.
    Place first joint to the center of the coordinates
    Freeze transform for first joint with this settings

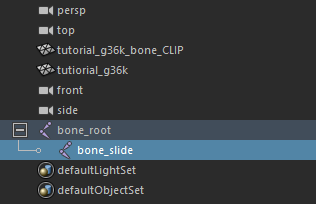

    Rename first bone to bone_root and second to bone_slide

    Add extra attributes
    Select your bone, Modify>Add Attribute

    First attribute

    Long name - p_bone_name
    Nice name - P Bone Name
    Make attribute - Hidden
    Data Type - String


    Then add second attribute

    Long name - p_bone_order
    Nice name - P Bone Order
    Make attribute - Keyable
    Data Type - Integer

    Select bone_root and expand extra attribute in the attribute editor, set
    P Bone Name - bone_root
    P Bone Order - 1

    Select bone_slide and expand extra attribute in the attribute editor, set
    P Bone Name - Slide
    P Bone Order - 3

    Skinning
    Select rifle mesh, add bone_root to selection then F3>Skin>Bind Skin
    Select rifle mesh F3>Skin>Paint Skin Weights
    All moving parts should have max bone_slide weights, all fixed parts should have bone_root max weights

    Add tags(empty groups)
    Deselect anything and press Ctrl+G to create empty group
    You need to add this tags:
    tag_weapon_handle - place for character right hand
    tag_secondary_handle - place for character left hand
    tag_shell_eject - place for ejecting shells
    tag_muzzle_flash - place for muzzle flash effect
    tag_gunmag_handle - place for clip
    tag_attach - place on the back when player is running
    tag_vfx1 - optional place for effect, digital cross-hair in my case
    tag_vfx2 - optional place for effect, digital cross-hair in my case

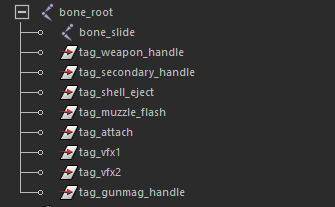

    Select all of them in Outliner, press middle mouse button and drag drop them on bone_root
    After this you can move them to the points where them should be on your weapon.

    Then select your bone_root and scale it to 2.54

    Export
    Fbx export settings
    Select rifle mesh add bones and tags to selection and File>Export Selection>Fbx to your_rifle.fbx
    Deselect all, select clip and File>Export Selection>Fbx your_clip.fbx
    For the rifle you can go to the step 5, but clip need some fixes

    Fixing problem with clip name
    Open your clip FBX with SDK converter and convert it
    Go to output folder and find clip related files
    Rename all of them with package name
    Set folder to you cloned weapon folder
    Then press Package button in SDK converter
    That all but SMG template have some problem as two-handed shooting, pistol shells and wrong slot. I will show how to fix it in Step 6
    That all you can export all to Fbx to the mod folder with your textures with this settings
    SECTION 5: EXPORTING WEAPON TO THE GAME

    Run sdk converter SaintsRow_FBX_Converter.py

    Press Import and choose your FBX file
    Set shaders to your material
    Press Rigx, Cmesh and Matlib buttons then press Convert

    After converting press Folder button and set path to folder with your cloned weapon and press Package

    That almost all you need only to pack files to vpp_pc, I use for this Saints Row IV workshop tool from steam
    Run tool, select all files in the cloned weapon folder
    drag and drop them to the tool window
    File>Save to file>PathToYourSR4\mods folder.

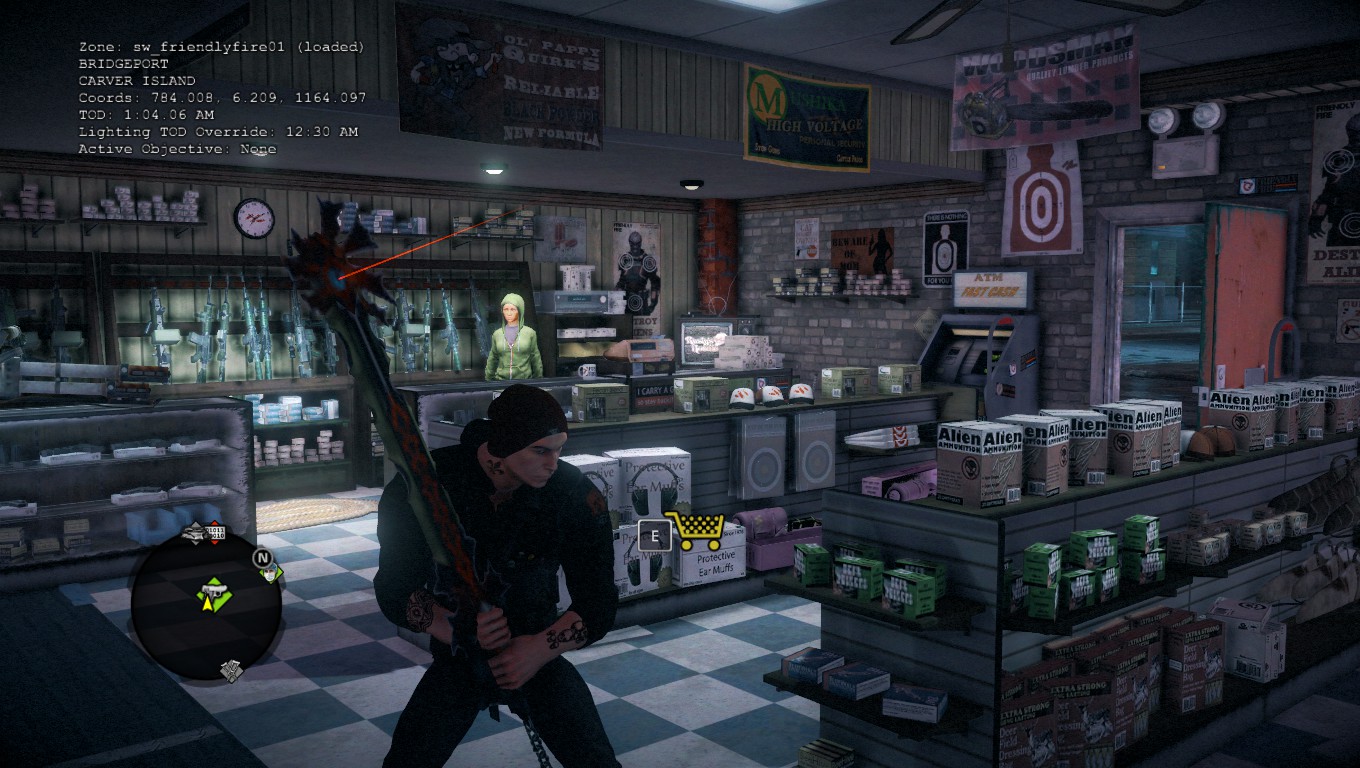

    Run the game to check out is it works. Yeah it's works
    SECTION 6: TWEAKING AND HOW TO

    How to change weapon's icon and cost
    1)First you need Flow754's Peg Assembler and any bitmap editor that supports DDS format like paint.net
    2)Create your own icon with size around 128x96, dds plugin for photoshop has limitation, width and height of the icon should be divided on 4 without the remainder
    3) Сreate alpha channel for this image, black background should be transparent.
    4) Save icon as DDS DXT5 with the name ui_hud_inv_your_weapon_name.tga.dds
    5) Open Flow754's Peg Assembler and drag and drop icon to here
    Name - always_loaded
    Output URL -path to folder with your cloned weapon
    Press create and two file always_loaded.cpeg_pc and always_loaded.gpeg_pc should be created
    7) Open items_inventory.xtbl and find <Bitmap> section
    and past there your icon name without .tga.dds
    8) Cost of weapon is in the <Cost> section change it as you wish an save changes after
    9) Drag and drop all files from clone weapon folder to Saints Row IV workshop tool and save them to mods folder or to the Steam Workshop
    How to add special effect for the weapon
    Open weapon_costumes.xtbl and find <Constant_Effects> section
    and add construction like this
    Code (Text):

                    <Constant_Effect>
                        <Effect>VFX_LaserSight</Effect>
                        <Weapon_Prop_Point>my_vfx</Weapon_Prop_Point>
                        <Condition>always on</Condition>
                    </Constant_Effect>

    Where VFX_LaserSight - effect from misc_tables.vpp_pc\effects.xtbl
    my_vfx - tag that I have created in Maya before without tag_ prefix
    always on - condition that starts effect
    always on
    during melee swing
    fine aim
    weapon raised
    during reload
    weapon not firing
    How to change weapon's name and description

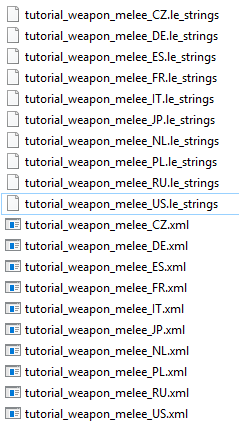

    In folder with cloned weapon you can see stringxml folder, there are a language files in xml format
    open them with any text editor, edit them then after saving and open them with ThomasJepp.SaintsRow.BuildStrings.exe
    from Minimaul's Saints Row IV Tools, it will create le_strings files, copy them and replace in the weapon clone folder
    More info is here
    How to change shooting aiming, etc character animation for the weapon
    Open weapon_costumes.xtbl in your cloned weapon folder and find <Animation Group>
    View attachment 18697

    You can past here this values but some of them may not work because was cutterd from previous game:
    Bow
    Brute
    Chainsaw
    Default
    Drunk
    DualPistol
    Dubstep
    Flamethrower
    Genki
    GrenadeLauncher
    Hunting
    KB_Gloves
    Laser Shotgun
    Lever
    Luchador
    Melee
    Melee 1h
    Melee 2h
    Minigun
    Nightstick
    PepperSpray
    PimpSlap
    Pistol
    Predator Drone
    Revolver
    Rifle
    Riot
    RPG
    SatchelCharge
    SawedOff
    Shot Gun
    SidescrollBike
    Sledge
    SMG
    Sniper
    StagRifle
    Stun Gun
    Sword_1h
    Thrown
    How to change weapon slot
    Open weapons.xtbl in your cloned weapon folder and find <Inv_Slot> section you can put there:
    unarmed
    single_use
    rifle
    explosive
    special
    grenade
    vehicle
    melee
    pistol
    smg
    shotgun
    How to make possible to shoot with your weapon from each hand
    Open weapons.xtbl in your cloned weapon folder and find <Flags> section and put there <Flag>dual wieldable</Flag> or delete it if you want to remove this possibility
    <Flag>allow offhand grenade</Flag>
    <Flag>alt unlimited ammo</Flag>
    <Flag>always play melee vfx</Flag>
    <Flag>always wear on back</Flag>
    <Flag>apply force to live ragdolls</Flag>
    <Flag>armor piercing override</Flag>
    <Flag>attach to forearm</Flag>
    <Flag>attaches</Flag>
    <Flag>brass during reload only</Flag>
    <Flag>bullets can hit multiple humans</Flag>
    <Flag>bullets damage tanks</Flag>
    <Flag>can zoom</Flag>
    <Flag>causes convulsions</Flag>
    <Flag>constant vfx on combat ready only</Flag>
    <Flag>constant vfx only at night</Flag>
    <Flag>cutscene only</Flag>
    <Flag>disallow crouching</Flag>
    <Flag>disallow forward throw in vehicle</Flag>
    <Flag>disallow jumping</Flag>
    <Flag>disallow reload</Flag>
    <Flag>disallowed in demos</Flag>
    <Flag>do not hide when sprinting</Flag>
    <Flag>dual wieldable</Flag>
    <Flag>explosions damage tanks</Flag>
    <Flag>gibs victims</Flag>
    <Flag>has alt fire</Flag>
    <Flag>heavy weapon move speed</Flag>
    <Flag>incendiary shots</Flag>
    <Flag>infinite magazine capacity</Flag>
    <Flag>instant ragdoll</Flag>
    <Flag>left hand</Flag>
    <Flag>other hand ik during attack only</Flag>
    <Flag>lethal melee</Flag>
    <Flag>looping muzzle flash</Flag>
    <Flag>manually detonates</Flag>
    <Flag>melee can dislodge movers</Flag>
    <Flag>melee continue on world collide</Flag>
    <Flag>no blood splat</Flag>
    <Flag>no combat ready</Flag>
    <Flag>no random give</Flag>
    <Flag>no vehicle combat ready</Flag>
    <Flag>not allowed in vehicle</Flag>
    <Flag>not allowed with human shield</Flag>
    <Flag>on selection</Flag>
    <Flag>on trigger</Flag>
    <Flag>one shot shatter</Flag>
    <Flag>revives humans</Flag>
    <Flag>secondary trigger fires grenades</Flag>
    <Flag>secondary weapon</Flag>
    <Flag>unlimited ammo</Flag>
    <Flag>unlockable</Flag>
    <Flag>use block flinch anims</Flag>
    <Flag>use box shape for melee casts</Flag>
    <Flag>use mission srid for effects</Flag>
    <Flag>use modified bullet direction</Flag>
    <Flag>zoom allows fine aim</Flag>
    <Flag>show reserve in hud</Flag>
    <Flag>drops with full reserve</Flag>
    <Flag>player instant reload</Flag>
    <Flag>melee always dislodge</Flag>
    <Flag>no bullet decal</Flag>
    <Flag>manned turret</Flag>
    <Flag>force combat ready</Flag>
    <Flag>explosion ignores owner</Flag>
    <Flag>continuous burst</Flag>
    <Flag>alien weapon</Flag>
    <Flag>superpower blast</Flag>
    <Flag>create_endpoint_exp_on_miss</Flag>
    <Flag>use extra aim assist</Flag>
    <Flag>fire audio only on burst start</Flag>
    <Flag>hit effect on tracer impact</Flag>
    <Flag>acid shots</Flag>
    <Flag>anal probe ultimate</Flag>
    <Flag>scale damage up by dist</Flag>
    Archive with the all SR\SR4 weapons in FBX format which you can use as template you can download HERE


    Attached Files:

    Last edited: Sep 11, 2018
  2. This tutorial will be updated and fixed also I can add 3ds max version. Also if someone will show me how to add extra attributes to the Blender I will add tutorial for it too.

    Last edited: Apr 19, 2018
  3. Yeah,a Blender version would be cool.My 3ds max will stop working in 10 days but it'll be enough time to export a lot of .fbx files.Btw. Would it be possible to clone the GOOH Sloth Gun made/ported idk by bigbang and simply replace the sloth mesh by one simple one bone mesh?

  4. Yeah, I think it's possible if this weapon doesn't use some additional animation but not so sure about particle effect, i have never edited it.

    Jeez, I though that Blender community are mature now, but it's looks like only programmers and Unity enthusiasts are here. Google found three unanswered questions about extra attributes on forums, anyway after some experiments I added extra attributes. No sure are they work but it's looks promising, upload_2018-4-20_9-30-17.png

    Last edited: Apr 20, 2018
  5. Wow,that is pretty cool man.:eek:And yes the sloth gun uses animation and effects as far i could see.The sloth gun acts somehow like a vehicle and i would like to replace the sloth mesh with a (Silver)Surfboard and let the player character stand on it.It would be cool if the board could use the gun but it would also be enough to me if it's just the board.

  6. Sloth gun is't actually a vehicle, it's gun with very specific animation set for the character, IDK how bigbang make it but from my point of view it's a huge amount of work to port animation and add new strings to the tables, I guess it will be much easy to set some costume and animation through lua script.

  7. Ok.I thought that replacing the mesh is the only thing to do but if its that difficult then i can't do it because my knowledge is unlikely much to low about all that stuff and i also don't know enough about lua scripting im on the early start with it right now.But maybe some day someone will read my request and creates a cool silversurfer board. :rolleyes:

  8. It theory you can create your own Animation group in anim_groups.xtbl then map to this group in anim_default.xtbl some animation as surfing on the roof of the car and set this group to your weapon.

    daspex likes this.
  9. I know how to do animations in Poser 7 but my knowledge on put that to the game is to low.What kind of animation .bvh or whatever.I' am not a programmer or game dev.At sample it starts with "What is an animation group?How are movements of whatever object are handeld by the game engine? I think i'd better stop modding games i don't understand and simply go back modding Skyrim,Oblivion,or fo3/4.But i want to say that you are the most cool guy here in the community.Thank you very very much for all the information you gave and your patience with my stupid nerd questions.Thank's a lot.

  10. You think too much, we don't have possibility to create new animation in SR4, that is only text work in anim_default.xtbl where you prescribe what the name of existed animation should play when you aiming, running, etc.

    Last edited: Apr 21, 2018
